CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-500LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: 500LPH Ion Exchange Water Softener System Sand Filter: 100KG Quartz Sand
Carbon Filter: 25KG Activated Carbon Softener Filter: 50L Cation Resin
Security Filter: PP Filter Cartridge: 20 "x 5μm Pipe Fitting: U-PVC / Stainless Steel
Pre-treatment Tank: Fiber Glass / Stainless Steel Desalination Rate: ≥ 97%
High Light:

water softener treatment systems

,

softening water system


Product Description

CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener



Introduction of Reverse Osmosis (RO) System

The reverse osmosis(RO) water treatment plant is an equipment to purify water with the action of pressure difference of semi permeable membrane. RO membranes can effectively remove majority of organics, harmful substances, bacteria, particulates etc in the raw water. RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production, power stations, electronic industries, cosmetics production, medicine(pharmaceuticals) manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.



This water treatment system is suitable for purifying borehole salty water, normal municipal tap water, underground water, lake water, river water, requires water source TDS (Total Dissolved Solids) less than 2000mg/L. If your source water is very salty water, please send email and inform us about the features of the water, it will be better if you have water quality analysis report. Thank you for clicking our products in more than ten thousands of products.

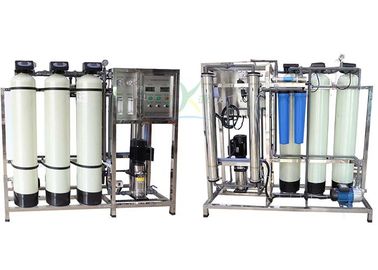

500 liter per hour ro water treatment system with auto softener

Remark: Now we change all the control panel of water filtration system to be the same as the first picture.


CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener 0
CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener 1
CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener 2


Specification of the Water Treatment Equipment



Output water production capacity

500Liters per hour

Water source TDS

less than 2000pp

Raw water pump& high pressure pump

CNP Nanfang

Reverse osmosis (RO)membrane

Imported USA Filmtec DOW

Membrane housing

FRP (fiber glass)

Desalination rate

≥97%

Recovery rate

≥40%

Power supply

380V / 50Hz / 3Phase (customized)

Control system

RO-PLC or Mitsubishi PLC with touch screen

Electrical components

CHNT or ABB

Packing

wooden case

Warranty

1 year

Application

drinking water, bottled water or for industry use



500LPH ro water treatment system in our warehouse, we have many in stock^^



Working Process

raw water→ raw water pump→quartz sand filter→activated carbon filter→water softener →security filter →high pressure pump→RO system →UV light/ozone generator →water supply point



                                                                Accessories
CE ISO Approved 500LPH RO Water Treatment System With Auto Water Softener 3


Welcome to send us inquiry if you're interested in our products! Thank you!^-^
