500LPH Ion Exchange Water Softener System With Salt Tank And Cation Resin

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-500LPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	1-7working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>300sets/month

Get Best Price Contact Now

Detail Information

Name:	500LPH Ion Exchange Water Softener System	Sand Filter:	100KG Quartz Sand
Carbon Filter:	25KG Activated Carbon	Softener Filter:	50L Cation Resin
Security Filter:	PP Filter Cartridge: 20 "x 5μm	Pipe Fitting:	U-PVC / Stainless Steel
Pre-treatment Tank:	Fiber Glass / Stainless Steel	Desalination Rate:	≥ 97%
High Light:	water softener treatment systems , softening water system

Product Description

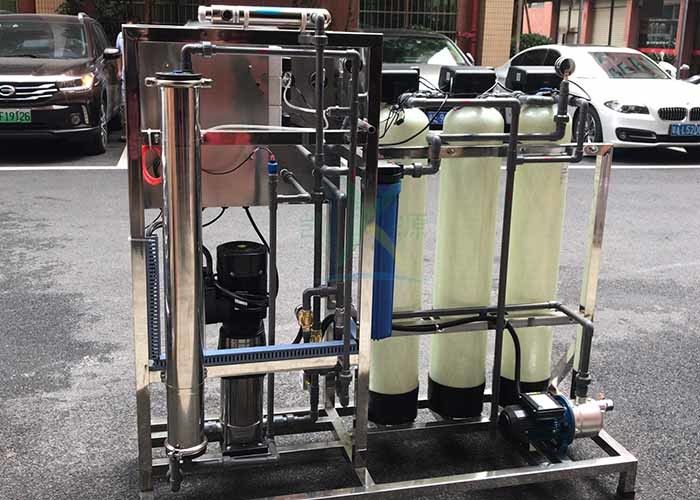

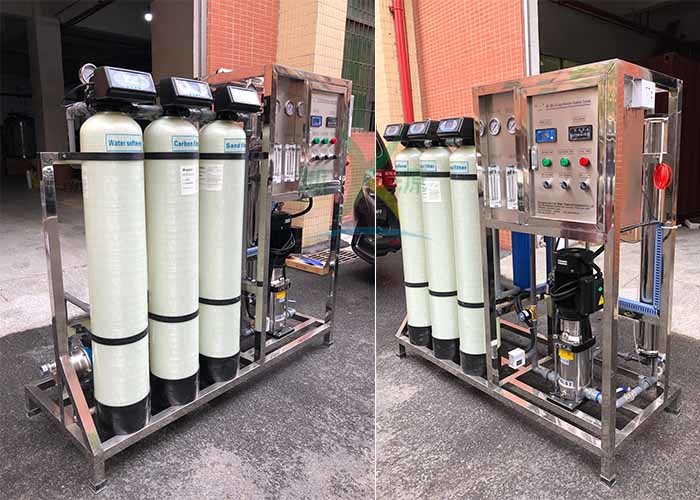

500LPH Ion Exchange Water Softener System with Salt Tank and Cation Resin

Technical index and working

1.Water pressure:0.18-0.6Mpa

2.Working temperature:1°c-55°c

3.Hardness of raw water: <8mmol/L

4.Operation method:manual/automatic

5.Hardness of effluent water: ≤0.03mmol/L

6.water flow: 0.3-20 t/h

7.Rebirth method:resin

8.Control method: time or flow

9.Working electric: 100-220V,60/50Hz

Introduction

Ion exchange units that replace calcium and magnesium ions from water are known as water softeners. They may also remove varying amounts of other inorganic pollutants such as metals, but they will not remove organic chemicals, pathogens, particles, or radon gas. Water softener units work most efficiently with particulate-free water.

Principles of Ion Exchange to Soften Water

Calcium and magnesium ions are atoms having a positive electrical charge, as do sodium and potassium ions. Ions of the same charge can be exchanged. In the ion exchange process, a granular substance (usually a resin) that is coated with sodium or potassium ions comes into contact with water containing calcium and magnesium ions. Two positively charged sodium or potassium ions are exchanged (released into the water) for every calcium or magnesium ion that is held by the resin. This “exchange or trade” happens because sodium or potassium are loosely held by the resin. In this way, calcium and magnesium ions responsible for hardness are removed from the water, held by the resin, and replaced by sodium or potassium ions in the water. This process makes water “soft.” Eventually, a point is reached when very few sodium or potassium ions remain on the resin, thus no more calcium or magnesium ions can be removed from the incoming water. The resin at this point is said to be “exhausted” or “spent,” and must be “recharged” or “regenerated.”

Type choice:

Softener equipment applies cation resin for softening raw water,its main target is to use cation resin to absorb(main parts of ),encreasing the hardness of raw water.

1. Users can choose manual operation control system for saving cost.

2. If users using for 24 hours can accord to water using time choosing for rebirth

3. Uses can according to water quality requirement:first grade multi-media filter,which can remove mud,rust,colloid and suspension in water.Second grade activated carbon filter,which can remove color,olfactory,biochemistry organic in water and encrease the left oxygen value and pollution in water.Third grade equipment softener equipment.

4. Effluent water capacity achieves the water supply of national low-pressure boiler.

5. Time control- type;flow control- type.In working ,apply single-tank,double-tank and multi-tank etc. other varied combination method.When choosing,users can choose as their needs.In operation,it has not only automatic function,but also is manual operation.

Welcome to send us inquiry if you're interested in our products! Thank you!^-^
