Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
Name: RO Water Treatment Plant 3TPH Production Capacity: 3000 L/H
Electrical Power: 380V 50Hz 3Phase Tank Material: FRP/ Stainless Steel
Pipe Fitting: SUS304/ U-PVC Application: Pure / Industrial / Drinking Water
Feed Water TDS: <2000mg/L Cation Resin: 350L
High Light:

water softener treatment systems

,

softening water system


Product Description

Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener



The hardness of the output water test by the "chrome black T reagent" showed blue is qualified (<0.03mmoL/L).



1. Product Description



*What is RO (Reverse Osmosis) ?

Reverse osmosis (RO) is a kind of water purification technology that uses a semipermeable membraneunder pressure applied to remove ions, molecules, and larger particles , bactaria and so on from water, and is used in both industrial processes and the production of potable water.



RO reverse osmosis system is the most economical and high efficient purification method.

Desalination rate ≥99% , 99% organic and bacteria can be removed;

Treated water under good electronic conductivity, one stage ≤10u s/cm, two stage around 2~3u s/cm, EDI≤0.5u s/cm(based on raw water ≤300 u s/cm.





Design Scope: Depending on client’s water test report

1) Raw water test report:Underground well water
2) RO Purified water capacity:5000L/H @ 25Deg C
3) RO system recovery : 60%-70%
4) Desalination ratio: 97.3%-98%

5) System working Voltage/Power: 380V 50HZ three phase

6) Feed water Capacity & Working pressure :10000L/H
7) Outlet Purified water standard: TDS<1000PPM ; TDS<30PPM for drinking standard


2. Features


1. The world's most advanced Reverse Osmosis technology, optimized design and exquisite production technics.
2. All in one compact design, well-chosen materials.
3. High salt rejection rate more than 99% ,
4. stable performance, safe and reliable, up to date and ingenious design. low cleaning frequency.
5. On-line conductivity monitoring , ensure good quality of water output .
6. Automatic control system; easy installation,operation and maintenance;small size.
7. Precise design of technics and well-chosen material.
8. long lifetime, low energy consume and low maintenance cost.
Photo Show

3. Process



Raw water pump→ Silica sand filter → Activated carbon filter→Water softener → Security filter→ High-pressure pump→ 1st RO system...



1. Raw water pump: provide the pressure to silica sandfilter/active carbon filter
2. Silica Sand filter: get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Activated Carbon filter: Remove the color, free chloride, organic matter, harmful matter and so on
4, WATER Softener: Get rid of calcium and magnesium ions in original / source water, reduce water hardness.
5. Security filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
7. RO system-- main part of pure water treatment plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic.

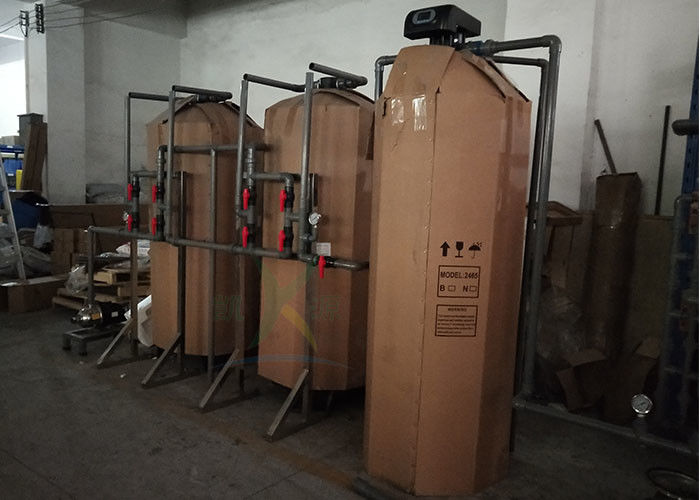

4. Pictures show

Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener 0
Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener 1
Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener 2
Industrial RO Water Treatment Plant 3TPH Reverse Osmosis Device With Water Softener 3


If interests & any questions just feel free to buzz me anytime^-^
