| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-1000LPH Tank |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | Pre-treatment Tank | Materia: | SS304 / SS316 |
|---|---|---|---|
| Color: | Blue / Nature / White / Black | Cleaning Ways: | Automatic And Manual |
| Usage: | Quartz Sand / Activated Carbon / Water Softener | Application: | Water Treatment |
| Diameter: | 20mm To 10000mm Or Others | Warranty: | 1year |
| Highlight: | stainless steel filter tank,high pressure pump |
||

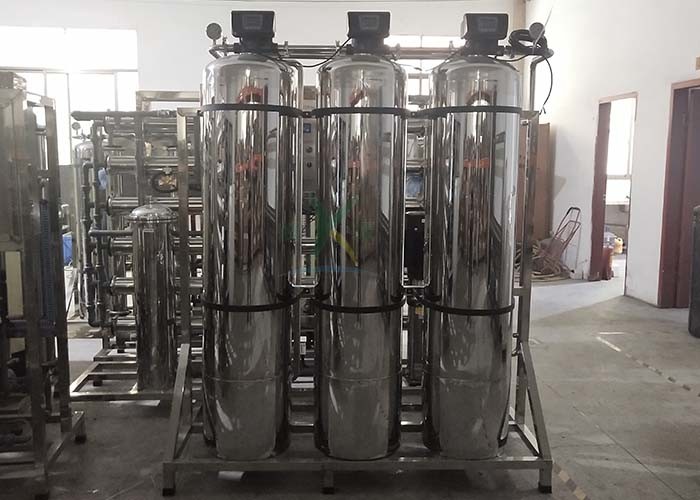

Pre-treatment Tank For Water Treatment Accessories
1000TPH SS304 / SS316 Filter Sand Carbon Softener Tank
Design Scope: Depending on client’s water test report
1) Raw water test report: Underground well water/ Tap water/ Spring water
2) RO Purified water capacity:1000L/H @ 25Deg C
3) RO system recovery : 60%-70%
4) Desalination ratio: more than 97%
5) System working Voltage/Power: 380V 50HZ three phase (customize)
6) Feed water Capacity & Working pressure :1.3T/H
7) Outlet Purified water standard: TDS<1000PPM ; TDS<30PPM for drinking standard
RO (Reverse Osmosis) water filtration system is the most effective and popular drinking water treatment solution due to its stable salt rejection features and effective filtration result to removal the bacteria, virus, microbiological contaminants, organic contaminants, metal ion etc. the following chart is the comparison chart of RO system against the other type of filtration method.
The purpose of the pretreatment system:
| 1. Guarantee not to be greater than 5.0 and strive for less than 3.0; |
| 2. Ensure that the turbidity is lower than 5; |
| 3. Ensure that there is no residual chlorine or similar oxides, such as: ozone; |
| 4. Ensure that there are no other chemicals that may cause membrane contamination or deterioration. |
| Our process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator) + water supply point |
Some parts functions with our machine:
|
Raw water tank |
Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system |
|||||
|
Raw water pump |
Provide needed pressure for every pre-treatment filter |
|||||
|
Quartz sand filter |
We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc. |
|||||
|
Activated carbon filter |
We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances. |
|||||
|
Water softener |
Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling |
|||||
|
Security filter |
Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm |
|||||
|
High pressure pump |
Provide needed working pressure for RO system, ensure production capacity of pure water. |
|||||
|
RO system |
Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts |
|||||
|
UV & Ozone Sterilizer |
for killing bacterial in water, used for human daily drinking |
|||||
Any capacity could be customize made, welcome to visit our factory^^
