1000LPH Automatic Water Filling System , Single Phrase Bag Water Filter Systems

China 1000LPH Automatic Water Filling System , Single Phrase Bag Water Filter Systems supplier
1000LPH Automatic Water Filling System , Single Phrase Bag Water Filter Systems supplier 1000LPH Automatic Water Filling System , Single Phrase Bag Water Filter Systems supplier

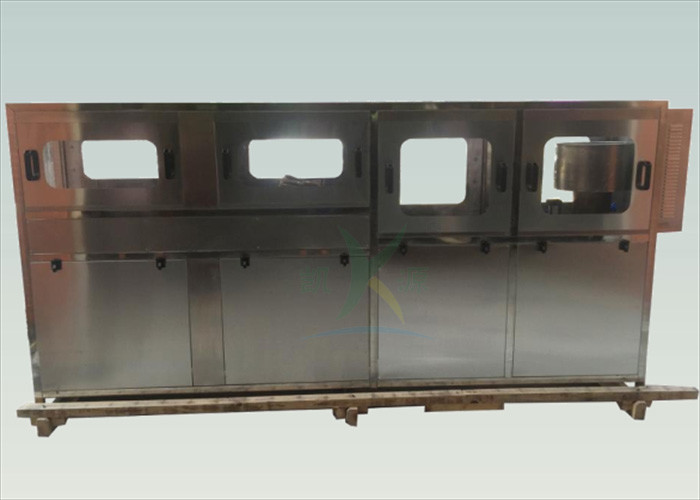

Large Image :  1000LPH Automatic Water Filling System , Single Phrase Bag Water Filter Systems

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-1000LPH bag filling

Payment & Shipping Terms:

Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Contact Now
Detailed Product Description
Yield Capacity: 1500~1800B/H Packing Volume: 100~500ml/Bag
Filling Precision: ±1% Film Width: 240mm Or 320mm(optional Or Choose Others)
Moter: Single Phrase/ 3 Phrases 1.1KW UV Sterilizer Lamp: 15kw
Dimension: 750*700*1700mm Warranty: 1year

full automatic 1000LPH bag filters for water treatment package machine

1. Product Description

Equipment summarize:

The machine can pack kinds of non-carbonated liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the cold beverage makes ice bag), soy milk, mineral water, greese bean curd and liquid sack.

Main Technological Data

Model KY-1000
Production Capacity 1500-1800BAGS/H
Filing Range 100-500ML(1000MLcan be customized)
Voltage AC220V/50HZ AC380V
Paper-offering Motor 250W/220V
Power of Hot Sealing vertical sealing

300W

500W

horizontal sealing
Main Motor Power 370W/380V/220V
Overall Dimension 750×700×1700MM
Weight 360KG


2. Product Details



This machine is a single polyethylene film package widely used in milk, soy milk, all kinds of beverages, jam, vinegar, wine and other liquids. It can sterilize automatically by ultraviolet. Bag is form and filling is quantitative. It completes Sealing and cutting off one-time. The machine is made of stainless steel, which meets the standards of World Health Organization. The machine performance is smooth and reliable, easy to operate, low failure rate. Domestic and foreign customers all have a good reputation of this machine.



Technique parameters

1. Yield capacity:1500~1800B/H

2. Packing volume:100~500ml/Bag

3. Filling precision:±1%

4. Film width:240mm or 320mm(optional or choose others)



Power:Moter: single phrase,three phrases 1.1KW

Vertical hot seal: 0.3KW;Horizontal hot seal: 0.5KW

UV sterilizer lamp15KW

5. Power supply:AC220V/Hz or AC380V(three phrases)

6. The weight of the machine:360kg

7. Dimension(L×W×H):750*700*1700mm



Function

1,sack molding 2,UV sterilizer 3,Vertical cutting hot seal

4,Date composed 5,beeline tows sack 6,ration filling

7,Horizonal cutting hot seal 8,Cutting sack 9,count automatically



3. Whole System Product Processing

Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank+UV sterilizer(ozone generator) +precision filter+ water supply point

System Performance:
*Main part (membrane) of reverse osmosis system is imported from USA.
*Auto stop when no water and full water.
*Auto controller, RO membrane auto flush to protect membrane.
*Auto start when pure water tank have no water.
*Low pressure protection switch to protect high pressure pump when there is no raw water.
*High efficient and low noise high pressure pump.
*Product water conductivity meter to monitor product water quality all the time.
*Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
*Inlet water solenoid valve to stop water when machine is stop.

Application:

Feed water(source water):
City water, river water, lake water, underground water(borehole, well), brackish water, sea water......

Treated water:
1. Electronic industry: Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry: filter for mineral water, wines and fruit juice
3. Medicine industry: filter for drug liquid, gases
4. Chemical industry: filter for organic solvent
5. Petroleum industry: filter for oil-field flooding

**Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ;

**Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water;

**Seawater, brackish water desalination islands, ships, offshore drilling platforms, brackish water areas

**Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions.

**Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water

**Can be used for filling water bottled water, mineral water and other preparation work

Component:



There are several kinds of consumables you need to replace regularly.

a. Quartz sand: replaced about every 15 months. 50kg/bag
b. Activated carbon: replaced about every 15 months. 25kg/bag
c. Resin: replaced about every 15 months. 25L/bag
d. PP Filter cartridge: replaced about every 1 month
e. Ro membrane: replaced about every 2 year

We suggest you buy 1- 2 years of PP filter cartridges together with machine. Because these PP filter cartridges need to replace every month.



Optional Components:
UV sterilizer
Water Softener
Ozone Generator
Two-stage RO system
Regulating wheels
Dosing system
Automatic cleaning system
PE,stainless steel or FRP water tank
