Place of Origin: | Guangzhou, China |
---|---|
Brand Name: | Kaiyuan |
Certification: | ISO9001, CE, SGS |
Model Number: | KYRO-750LPH |
Minimum Order Quantity: | >= 1sets |
Price: | negotiation |
Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
Delivery Time: | 1-7working days(depand on raw materials stocking) |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | >300sets/month |
Name: | Water Softener Ro Plant | Production Capacity: | 750liters Per Hour |
---|---|---|---|
Electrical Power: | 220/380V 50/60Hz | Tank Material: | FRP/ Stainless Steel |
Control Valve: | Automatic/ Manual | Pipe Fitting: | SUS304/ U-PVC |
Warranty: | 1 Year | Feed Water TDS: | <2000mg/L |
Desalination Rate: | >=97% | ||
High Light: | water softener treatment systems,water softener machine |

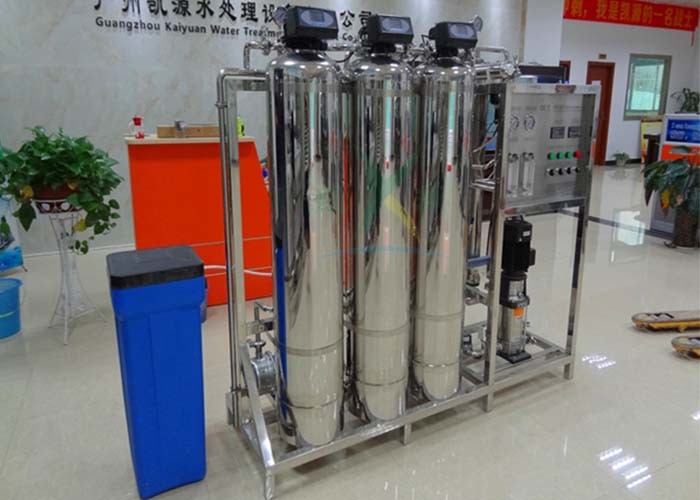

750lph Water Softener Ro Plant/Ro Mineral Water Treatment Appliances 0.75Tph Hotel Drinking Water Machine
The hardness of the output water test by the "chrome black T reagent" showed blue is qualified (<0.03mmoL/L).
1. Capacity: 750L/H RO
|
2. Rated power: 2.5KW/H
|
3. Rack Size: 1870*630*1850mm |
4. Voltage: 110V 415V , 50Hz / 60Hz, single phase/3phase
|
Water Treatment Plant is widely used in drinking water supply, purification for tap water, underground water, borehole water, spring water, pure water and beverage area.
Raw water source:Bore whole, river, well, mountain spring, lake, etc
Raw water pump/multi pump:Nanfang, Grundfos
Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane:Filmtec Dow,Hydranautics
Multi-media filter
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
Active Carbon filter
The active-carbon filter is the key device, commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water. The system is a pressure filter. In the filter, the quartz and Coconut shell active carbon bed are employed. The activated carbon is equipped with vent valving at the highest point and a drain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.
Water softener filter
Ion exchange resin is used in water softening system for Ca+,Mg+ and other cation exchange . To prevent undissolved salt from depositing in the surface of reverse osmosis membrane ,the resin which ensures well permeable ability of membrane module after it works a long time and extends lifetime of membranes , enhances quality stability of ro purified water . Water softener is vertical structure which use frp material , produced as vessel standard, designed pressure for 8kg/cm2 that
American auto valve is used for full-automatic salt regeneration .
Security filter ( Micron Filters)
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 3 pieces of polypropylene in every 5μ filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.
Reverse Osmosis Modules( RO)
RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
