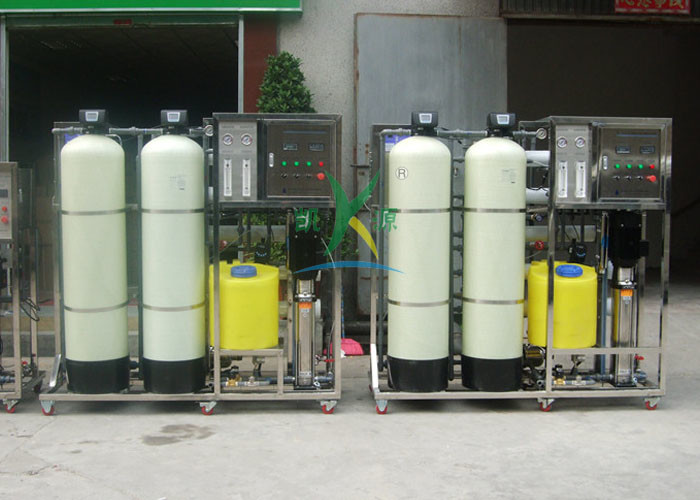

1000L/H brackish borehole well underground water reverse osmosis drinking ro water purifier system
Large and medium-sized sea water, sub-sea water and brackish water desalination equipment for high salt and alkali areas and sea water intrusion, island and other regions, the company research and development production of large and medium-sized desalination equipment using reverse osmosis desalination system and supporting high-quality desalination components, Post-taste improvement and PH value adjustment system with reasonable pretreatment equipment, can effectively remove inorganic salts, heavy metal ions, organic matter. bacteria and bacteria and other harmful ingredients. the sea water, sub-sea water. brackish water desalination in line with national Drinking water standard quality water. According to the customer's local water quality for detailed analysis and special design. and strive to be efficient and durable. and make the desalination of water quality fully meet the national standard of drinking water quality(gb5749-2006) completely solve the problem of drinking water in dry areas.
|kyro-500lph RO Water Purifier Machine:
|1. Capacity: 5000L/H
|2. Rated power: 2.5KW/H
|3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase
|4. Desalting rate:>=97%
|5. Water recovery rate: 40%
|6. TDS of raw water: ≤20000μs
|7. TDS of pure water: ≤600μs
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank
The basic process of equipment.
Brackish water from the water pump into the quartz sand (multi-media filter) and activated carbon filtration system filtration. Filtered water after water quality reduction, PH adjustment and scale inhibitor added after the access to the precision and security filtration system, filtered low pressure brackish water all the way into the high-pressure pump pressure, the other way into the pressure exchange energy recovery device, after pressurized pump pressurized with high pressure pump into the reverse osmosis membrane reactor system. High-pressure brackish water in the membrane reactor under the treatment of the formation of fresh water through the membrane after water quality adjustment into the fresh water tank storage. The rest of the high pressure concentrated water enters the pressure exchange energy recovery unit to recover the energy after discharge.
• Homes and Villas
• Commercial Complexes
• Kindney Dialysis Unit
• Poultry Farms
• Food and beverages industry
• Bottled drinking water plants
• Cooling tower /Boiler feed water
1) Equipment for islands, ships, fishing, coastal water shortages
2) The rack is made of rust-proof and corrosion-resistant material
3) Large-scale equipment using energy recovery device to reduce the system running energy consumption small and micro-equipment using multi-stage desalination device to reduce the operating pressure of the system to reduce the size of equipment to facilitate the miniaturization of equipment.
4) Power: 220V/50/60HZ, 380V/50/60HZ (can also be customized according to customer requirements of different voltage).
5) fresh water quality in line with national drinking water quality standards(gb5749-2006)
6) Design life of 10 years
7) Another can be customized container type desalination equipment system
