|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|RO Membrane:||USA DOW||Production Capacity:||12TPH|
|Voltage:||380V 50Hz 3Phase (Customized Suit For Local)||Control Valve:||Automatic / Manual|
|Pipe Fitting:||U-PVC||Raw Water TDS:||< 25000mg/L|
|Application:||Pure / Industrial / Drinking Water||Name:||Brackish Water System|
brackish water filter,
brackish water ro system
12000LPH Brackish water treatment/ drink water treatment machine/ ro water treatment system
Reverse Osmosis(RO) water purifying system (HOT!)
How the RO System Works
A semi-permeable membrane in a reverse osmosis system only allows certain things to pass through. This membrane
passes water easily but also prevents many other contaminants from passing by trapping them. Water is normally on both sides of the membrane, the water on each side has a different concentration of dissolved minerals. Water in the lower
concentration tries to dilute the more concentrated side. Water will pass through the membrane from the lower concentration side to the higher one. The osmotic pressure (see diagram) created by the difference in water levels, will
counter the diffusion process forming an equilibrium between the two sides. RO diagram as below:
2. Product Details
|KYRO-12TPH Brackish Water System|
|1. Capacity: 12T/H|
|2. Rated power: 19.5KW/H|
|3. RO System Rack Size: 4000*900*1800MM|
|4. Desalting rate:>=97%|
|5. Water recovery rate: 50-75%|
6. Voltage: 380V 50Hz 3phase
Electronic industry--water for washing electronics components like integration electric circuit, silicon wafer, and display tube
|Water for chemical industry|
|Water for Pharmacy industry|
|Boiler feed water for electric industry|
|Sea water and brackish water desalination|
|Drinking pure water--houses, communities, companies, etc.|
|Water for food industry--drinking pure water, beverage, beer, wine, health products, etc|
|Low energy consumption|
|High desalination rate (>97%)|
|High recovery rate(from 50-75 %)|
|Reasonable structure, less space occupied|
|All essential parts are from famous factories with high quality|
|Self protection mechanism. Stop for self protection when fault occurs|
|Easy to extent. Just need to add more membranes for bigger capacities.|
|Advanced membrane protect system. Before shutting down, fresh water can wash the contaminated substances on the membrane surface automatically|
5. Wroking Process
Technical route: raw water tank→raw water pump→quartz sand filter→active carbon filter→dosing unit→micron filter
→RO system(inclusive of RO cleaner)→purified water
Water Treatment Plant is widely used in drinking water supply, purification for tap water, underground water, borehole water, spring water, pure water and beverage area.
Raw water source:Bore whole, river, well, mountain spring, lake, etc.
Raw water pump/multi pump:Nanfang, Grundfos

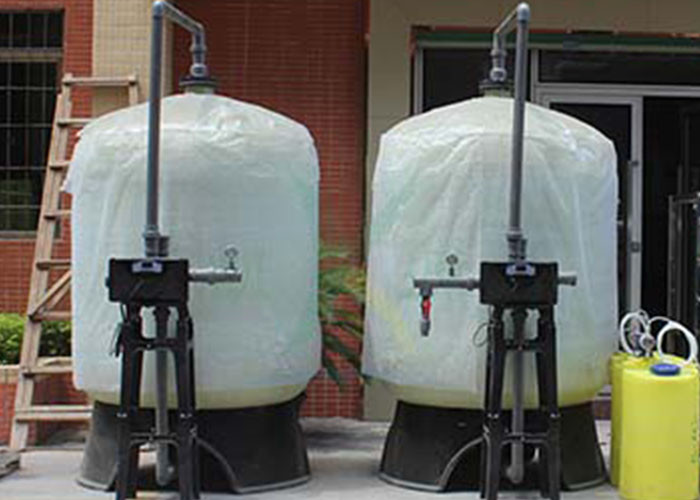

Filter media:Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane:Filmtec Dow,Hydranautics
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
6. Pictures show:
Our main products include: RO system, RO plant, UF system, EDI system, water softener, water filters, FRP tanks, membranes, membrane housings, etc. Besides standard products, we can also do customized products.
Please just tell me your needs and we will do the rest for you.
