10 Ton /H Reverse Osmosis Well Water Filtration Systems 10000 LPH With EDI System

Basic Information

Place of Origin:	Guangzhou, China
Brand Name:	Kaiyuan
Certification:	ISO9001, CE, SGS
Model Number:	KYRO-10TPH

Minimum Order Quantity:	>= 1sets
Price:	negotiation
Packaging Details:	export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time:	20-25working days(depand on raw materials stocking)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	>100sets/month

Get Best Price Contact Now

Detail Information

RO Membrane:	USA DOW	Production Capacity:	10TPH (customized From 250L/H To 200T/H)
Recovery Rate:	50% - 75%	Electrical Power:	220V / 380V Or Others
Membrane Housing:	FRP/ Stainless Steel	Control Valve:	Automatic/ Manual
Pipe Fitting:	SUS304/ U-PVC	RO Rack Size:	40009001800MM
Application:	Pure Water / Industrial Water / Mineral Water
High Light:	brackish water treatment , brackish water ro system

Product Description

10000 LPH 10 Ton per hour EDI system provided reverse osmosis water purification machine ro water

1. Product Description

This water treatment system uses mechanical filters, activated carbon filter as a pre-class treatment, the effective removal of suspended solids in raw water, sediment particles , organic colloids, organic matter, odor, chlorine and other impurities, with pre-programmed as a reverse osmosis desalination plant to remove the raw water. Most of the dissolved salts, bacteria, hot stream and so on, to ensure finished water quality standards.

2. Product Parameter

Item Name	KYRO-10TPH RO Water Treatment System
Capacity	10T (Customized from 500L/H to 200T/H)
Desalting rate	More Than 97%
Pipe material	High quality U-PVC (Stainless steel for option)
Frame material	304stainless steel (carbon steel,316stainless steel for option)
Pre-treatment vessel material	FRP vessel ( stainless steel or carbon steel for option)
Membrane brand	Vontron (Dow or GE for Option)
RO membrane housing	FRP or stainless steel
Raw water pump&high pressure pump	Nanfang, Grundfos and others for optional

3. Application

Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.

Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.

Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.

Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.

Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.

Purified drinking water: house properties, communities, enterprises, etc.

4. Advantages

1).Can produce pure water continuously and highly automatic

2).No need chemical to regeneration, easy operation

3).RO system uses imported USA DOW membrane

4).Automatic switch on when low water level, and switch off when high water level

5).RO membrane can wash automatically and reduce pollution

6).Water shortage protection for multi-stage pump

7).Production water conductivity meter can test the monitoring quality on line continuously.

8).Low operation Cost and Long life span

9).RO-PLC program controller

10).Easily control and Maintain

11) Auto flush/backwash

5. Process

Raw water----booster pump---quartz sand filter---activated carbon filter---water softener (optional)---security filter----high pressure pump---RO system---UV system (Ozone generator)---pure water tank

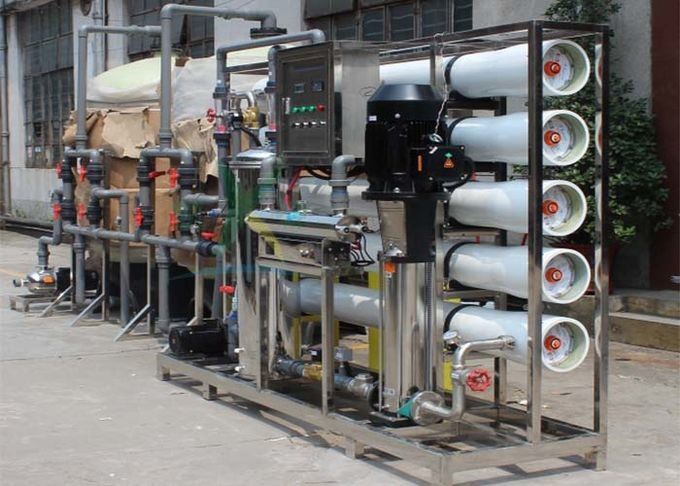

10 Ton /H Reverse Osmosis Well Water Filtration Systems 10000 LPH With EDI System 0

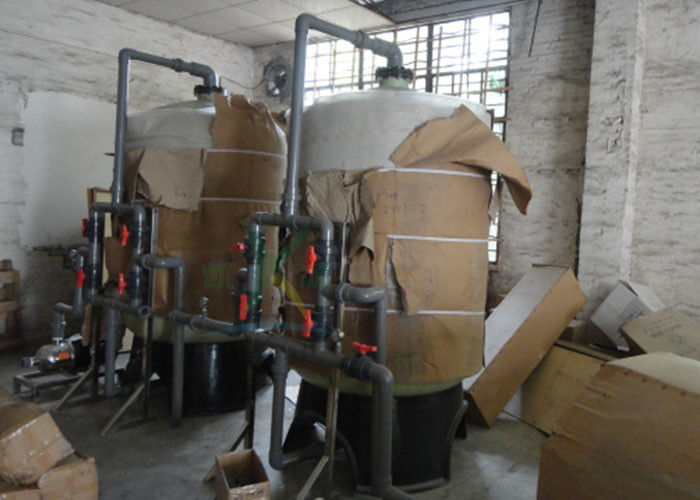

10 Ton /H Reverse Osmosis Well Water Filtration Systems 10000 LPH With EDI System 1

Any interests & any questions just feel free to buzz me anytime^-^
