30T/Hour Ro Desalination System for Well / Underground / Borehole Brackish Water Treatment

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-30TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 20-25working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 30TPH
Recovery Rate: 50% - 75% Electrical Power: 380V 50Hz 3Phase Or Others
Membrane Housing: FRP/ Stainless Steel Control Valve: Automatic/ Manual
Function: Purification For Pure Drinking Water Optional: UV Sterilizer / Ozone Generator
High Light:

brackish water filter

,

brackish water ro system


Product Description

30T/Hour Ro Desalination System for Well / Underground / Borehole Brackish Water Treatment



Parameters of Reverse Osmosis Filter System / Design Basis

1. Feed water—Tap water, Borehole water or River water
2. Machine’s name: Reverse Osmosis water purification machine.
3. Machine’s function: Purifying the feed water into drinking pure water.

4. Machine’s working principle: Using physical filtration of semi-permeable

RO membrane to separate impurities and harmless ions from pure water.

5. Filter materials: Quartz Sand, Active Carbon, Resin, and Membranes.
6. Pump needed: Feed booster pump and high pressure pump.
7. Material of filter tanks: Can be fiber glass or Stainless steel 304 or SS316.
8. Material of piping: Can be U-PVC or Stainless steel 304.
9. Working pressure of machine: 1.0-1.6 Mpa.
10. Electrical cabinet: Made by our company.
11. Material of the pressure vessel: Fiber glass (FRP)
12. Water storage tanks: Supplied by customers, PE or stainless steel.



Feature:

Operation pressure: 4.5 ~ 6.0 Mpa, desalination rate: 95 ~ 99%
Highly automation, stable operation, low fault rate and low operating cost
Apply to electronic, chemical, electric power, pharmaceutical and other industries of water preparation



Optional Equipment Available

a. Atmospheric storage tanks with level control and repressurization pump
b. Pressurized storage vessels
c. UV
d. Ozone generator
e. Membrane clean-in-place (CIP) systems
f. Pretreatment chemical injection systems



Application Scope of Portable Purification System

1. Electronic industry Pre-filter for ultra pure water, chemical products and pure water
2. Food and beverage industry Purification filter for mineral water, wines and fruit juice
3. Medicine industry RO filter for drug making
4. Chemical industry Desalination filter for organic solvent
5. Petroleum industry RO purfilter for oil-field flooding



Technical Flowchart of Reverse Osmosis Plant



Untreated water feed pump →Quartz sand filtration→ Active carbon filtration → Precise filtration → Softener→ High pressure pump →RO Membrane system→ CIP system → PLC system → Post Treatment (UV disinfection)



Description of RO unit



This system adopts mechanical and carbon filtration as pre-stage treatment. The device removes the sediments, organic substance, colloid, bacteria and other impurities in water. And the water can be pre-desalted by program control system. Most of the dissolved salt species material, bacteria and heat source can be removed by this method. Then use ozone preservation device to make sure that the water quality is up to the standard.



This system has both automatic and manual mode. The self-set program control system can implement the automatic running mode by regulating the transducer and pressure controller.

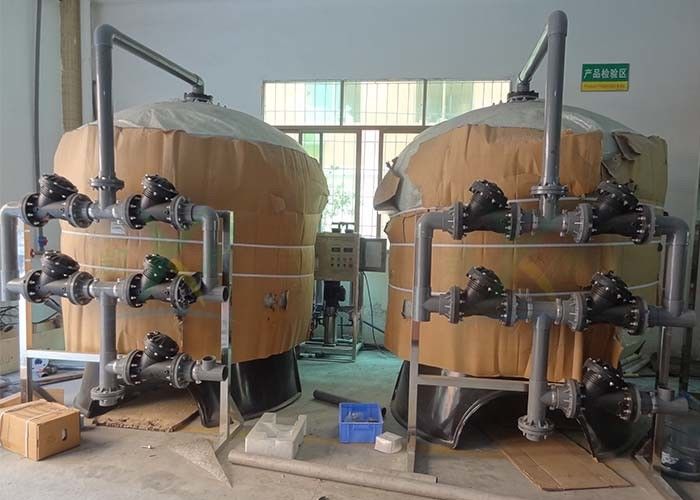

30T/Hour Ro Desalination System for Well / Underground / Borehole Brackish Water Treatment 0

30T/Hour Ro Desalination System for Well / Underground / Borehole Brackish Water Treatment 1

30T/Hour Ro Desalination System for Well / Underground / Borehole Brackish Water Treatment 2



As an original water treatment manufacturer for many years, our water treatment plants have been sucessfully operating in more than 50 countries. Pleiase feel free to contact us for more information! ^^
