|Place of Origin:||Guangzhou, China|
|Certification:||ISO9001, CE, SGS|
|Minimum Order Quantity:||>= 1sets|
|Packaging Details:||export standard wooden case(plywood), no need to fumigate, suitable for shipping.|
|Delivery Time:||1-7working days(depand on raw materials stocking)|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Name:||2000L/H Brackish Water Treatment||Purpose:||Salt Rejection|
|Recovery Rate:||40%||Voltage:||Customized Suit For Local|
|Control Valve:||Automatic / Manual||Source Water:||Borehole / River / Sea Water|
|Cartridge Filters:||Dia 20inch * 5 Elements, Melt Blown PP||Power:||14KW|
brackish water filter,
brackish water ro system
2000L/H compact size salty water / brackish water treatment RO system / RO plant
Brackish water TDS range 3000 - 25000 ppm , according to the organic content can be devided into surface water and ground water . surface water we can reverse osmosis system mating with relative sterilization system , ground water we can direct use reverse osmosis system , if Iron and Manganese overpass the inlet condition of RO ,we need add Manganese sand filter for pretreatment system , here also include the specific inlet conditon of RO system for reference.
2. Product Details
1. Pretreatment system:
|(1) Raw water pump|
|(2) Sand filter|
|(3) Activated carbon filter|
|(4) water softener|
|(5) Cartridge filter|
2. RO system parts:
|(1) High pressure pump: CNP brand|
|(2) Ro membrane: Dow brand|
|(3) RO membrane housing|
|(4) Ro rack and other related meters|
1.The reverse osmosis device is an equipment to purify the saltine water with the action of pressure
difference of semi permeable membrane.
2.It is called reverse osmosis, as it is counter to natural penetration direction. Different materials
have different osmotic pressures.
3.The reverse osmosis method to adopt larger osmotic pressures is used to obtain the purpose to
separate, extract, purify and condense.
4.More than 97% soluble salts and 99glues, microbe, particulate and organic substances and etc
can be removed with the reverse osmosis.
|5. It becomes the most idea equipment for the modem program of pure water, hyper pure water, and airspace water.|
6.The remarkable characteristics of the equipment are shown as lower energy consumption, no
pollution, simple techniques, high water quality, easy operation and maintenance.
Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking
4. Wroking Process
1. Raw water pump-- provide the pressure to silica sand filter/active carbon filter
2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, colloid and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water
4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
6. RO system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.

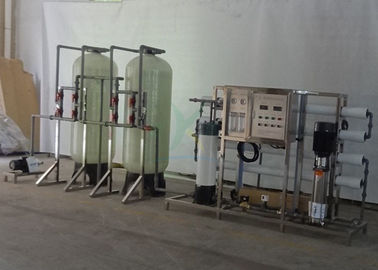

5. Pictures show:
