Water Softener System 1500L/H Automatic Reverse Osmosis Purification Machine
Water Softener(demineralizer) is also called sodion exchanger, Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling
1. Product Description
Equipment summarize:
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 97-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% of all bacteria in the feed water.
2. Product Parameter
kyro-1500lph Water Softener System
1. Capacity: 1500L/H RO |
2. Rated power: 3.0KW/H |
3. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase |
3. System Performance
* Auto stop when no water and full water.
* Auto start when pure water tank have no water.
* High efficient and low noise high pressure pump.
* Inlet water solenoid valve to stop water when machine is stop.
* Auto controller, RO membrane auto flush to protect membrane.
* Main part (membrane) of reverse osmosis system is imported from USA.
* Product water conductivity meter to monitor product water quality all the time.
* Low pressure protection switch to protect high pressure pump when there is no raw water.
* Input water and output water pressure gauge to monitor RO membrane differential pressure to remind it's time for chemical cleaning.
4. Product Processing
Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
Some parts function:
1. Raw water pump: provide needed pressure for every pre-treatment filter;
2. Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;^^
3. Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
4. Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
5. High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
6. RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
7. Ozone generator(for bottled drinking): can continue to kill bacteria even water fill into bottled,viruses,cell damage,atc...
5. Optional Components
A. Regulating wheels
B. PC Touch Screen
C. Two-stage RO system
D. PH adjustment
E. CIP cleaning system
F. Auto or manual control valve
G. U-PVC or stainless steel pipe
H. UV sterilizer/Ozone Generator
I. Dosing system(anti-scale)/Water Softener
J. PE or stainless steel raw/pure water tank
K. FRP or stainless steel pre-treatment tank

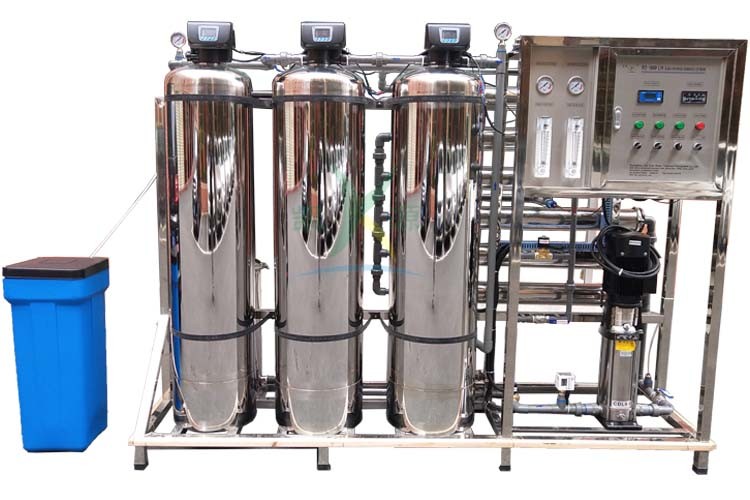

6. Photo Show
1. Raw water pump | 2. Quartz sand filter |
| 3. Activated carbon filter | 4. Water Softener |
| 5. Automatic control valve | 6. Inlet water pressure gauge |
| 7. Outlet water pressure gauge | 8. Salt Tank |
| 9. Security filter | 10. High pressure pump |
| 11. Input water pressure | 12. Output water pressure |
| 13. Dense water flow | 14. Pure water flow |
| 15. Pure water conductivity monitor | 16. PC controller |
| 17. Indicator Light | 18. Control Switch |
| 19. RO membrane |
