12TPH Reverse Osmosis Water Purification Plant TDS3000-25000ppm

Basic Information
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-12TPH
Minimum Order Quantity: >= 1sets
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >300sets/month
Detail Information
RO Membrane: USA DOW Production Capacity: 12TPH
Voltage: 380V 50Hz 3Phase (Customized Suit For Local) Control Valve: Automatic / Manual
Pipe Fitting: U-PVC Optional: Chemical Dosing System / Water Softener / PH Adjustment
Application: Pure / Industrial / Drinking Water Name: Seawater/ Brackish Water System
High Light:

brackish water treatment


brackish water ro system

Product Description

12TPH brackish bore water treatment RO drinking water filter system for TDS3000-25000ppm borehole water

1. Product Description

RO, also known as reverse osmosis, It is a process in which dissolved inorganic solids (such as salts) are removed from a solution (such as water). This is accomplished by household water pressure pushing the tap water through a semi permeable membrane. The membrane (which is about as thick as cellophane) allows only the water to pass through, not the impurities or contaminates. These impurities and contaminates are flushed down the drain.


2. Product Details


1. Capacity: customized
2. Rated power: check with the configuration list
3. Voltage: 220V/3phase/50Hz, 380V3phase/50Hz,or customized at different country
4. Desalting rate:97-99%
5. Water recovery rate: 50-75%
6. Conductivity of raw water: ≤400μs or custom designed
7. Conductivity of pure water: ≤10μs or custom designed


3. Application

  • Electronics Industry: Silicon,micro-electronics products with high water. Semiconductors,tubes and other manufacturing industries with high water. The using of production water batteries in lithium batteries, solar power batteries, dry cell batteries


  • Food and Beverage field: Pure water, distilled water, mineralized water, natural water,mineral water. The using of production water in liquor blending and beer production. The using of pure water in food and beverage production. The supply of drinking water for hotels, building and uptown


  • Phamaceutical industry:Pharmaceutical, injection with pure water, high pure water and sterile water,etc. Purification and separation of drug raw materials. Medical hemodialysis, biochemical analysis and water for injection


  • Cosmetics :The using of pure water in the production of skincare, shampoo,toothpaste and other cleaning fluid.


  • Chemistry and Chemical Engineering:The using of pure water in the production of chemical reagent, chemical fertilizers and paper making


  • Surface Treatment: The using of highly pure water in electroplating and glass coated. Ultrasonic cleaning with pure water. The surface coating and cleaning automotive,appliance, building material products with pure water


4. Function


1. Manually and automatically wash RO membrane, CIP system
2. Manually wash RO membrane with chemicals on machine,
3. Automatic shut-down at tank full,
4 .SS high pressure components, SS pump to avoid the leakage.
5. Multi-stage pumps protect the machine when lack of water,

6. Protection in such cases as no power, lower pressure, higher pressure, shot circuit, creepage, etc.


5. Wroking Process


Water source ----pressure pump----quartz sand filter-----active carbon filter ----security filter ---- high pressure pump ----anti-penetration film element(RO membrane) ----stage I RO water tank-----stage two high pressure pump----stage two RO unit---pure water

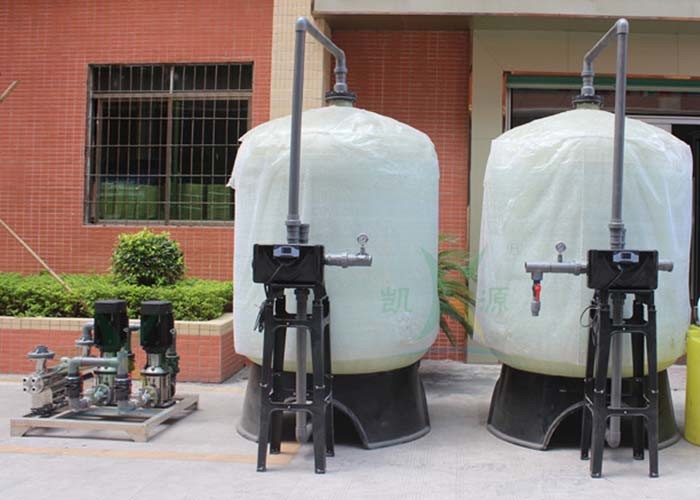

6. Pictures show:


12TPH Reverse Osmosis Water Purification Plant TDS3000-25000ppm 0

12TPH Reverse Osmosis Water Purification Plant TDS3000-25000ppm 1

12TPH Reverse Osmosis Water Purification Plant TDS3000-25000ppm 2

12TPH Reverse Osmosis Water Purification Plant TDS3000-25000ppm 3


Our main products include: RO system, RO plant, UF system, EDI system, water softener, water filters, FRP tanks, membranes, membrane housings, etc. Besides standard products, we can also do customized products.


Please just tell me your needs and we will do the rest for you.^^
