| Place of Origin: | Guangzhou, China |
|---|---|
| Brand Name: | Kaiyuan |
| Certification: | ISO9001, CE, SGS |
| Model Number: | KYRO-Filter Cartridge |
| Minimum Order Quantity: | >= 1sets |
| Price: | negotiation |
| Packaging Details: | export standard wooden case(plywood), no need to fumigate, suitable for shipping. |
| Delivery Time: | 1-7working days(depand on raw materials stocking) |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | >300sets/month |
| Name: | Filter Cartridge | Micron: | 0.1 Um , 0.22 Um , 0.45 Um , 1 Um |
|---|---|---|---|
| Length: | 10 Inch 20 Inch 30 Inch 40 Inch | Filter Media: | Polypropylene / PP Membrane |
| Application: | Water Filter Filtration | Usage: | Household Drinking Water Filtration |
| Warranty: | 1year | Approved: | ISO9001, CE, SGS |
| Highlight: | activated carbon filter cartridge,high pressure pump |
||
PP / WS Wire Wound / PEFT Polypropylene Folding / Alkaline CTO Activated Carbon Filter Cartridge
10 / 20 / 30 / 40 inch 0.1 / 0.22 / 0.45 / 1 / 5um micron Membrane For Water Filtration
PP fiber bundles are wound in their central post to form the WS series wire-wound filter elements with the filter fineness controlled by winding density and winding type. The equivalent pore diameters of wire-wound filter elements reduce from outside to inside, therefore they have good deep filtering effects.

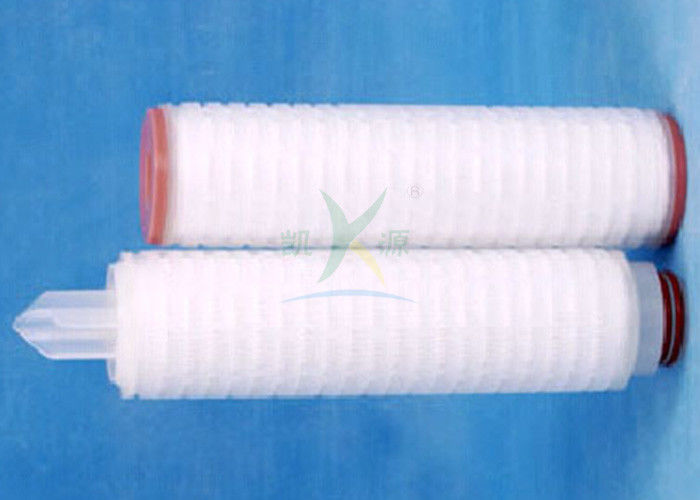

PEFT cartridge is fitted with double layered filter medium made of submicron polypropylene . With more than 0.5M2/10inch filter area and themic-weld of all polypropylene components, that make this kind cartridge adhering tothe USP Class VI and FDA CFR Title 21 criteria. do not contain binding agents, adhesives or additives. A high dirt-hold capacity and a low differential pressure, especially for filtering out impurities such as solid particles.
Activated carbon water filters cartridges are made with high adsorption valve coconut shell activated carbon.Their superior adsorbent and dirt holding capacity makes them ideal for use in residential and commercial water purification systems, food service applications, and as pre-filter in Reverse Osmosis systems. This cartridge can remove chlorine,taste,odor and organic chemicals which lead to bad taste and odor.No carbon granules or black water releasing.
**Product features
|
ID & OD (mm) |
Φ 30/65, Φ 28/65 etc. |
||||||
|
Length (mm) |
250, 500, 700, 1000 |
||||||
|
Filtration Accuracy (um) |
1, 3, 5, 10, 15, 20, 30, 50, 70, 100 |
||||||
|
Type |
Without filter core, With filter core, Outer sheath |
||||||
|
Interface |
Flat type, 222 type, 226 type |
||||||
|
End Cap |
Flat type, Fin type |
||||||
|
Operating pressure |
≤ 0.5Hpa |
||||||
|
Pressure Drop |
≤ 0.35Mpa |
||||||
|
Operating temperature |
≤ 80℃ |
||||||
| Isotactic polypropylene structure, | Good chemical compatibility, |
| high flow | high dust holding |
| Small capacity and low cost | High filtering precision |
| low differential pressure | high pressure strength |
| carrying large amount dirt | non-poisonous and tasteless and no secondary pollution |
| 1. The filter aperture is compact and uniform, high filtration efficiency. As the particles "bridge" phenomenon occurred in the filter pores, the particles less than pore can also be blocked, the filtration efficiency is more than 98% |
| 2. High cleanliness, no pollution to water quality |
| 3. Resist acid, alkali and other chemical reagents and organic solvents |
| 4. Great strength. When the pressure difference between the inlet and outlet of the filter is 0.4Mpa, the filter element is not deformed |
| 5. Cheap, and can be reused after cleaning, reduce the using costs |
**Product application
| prefiltration of pure water system | filtration of food and drinks |
| filtration of acid and alkali solvents | filtration of industrial water and oil |
| 1. Water filter: such as medium and big size of ultrapure water system and beverage industry water use’s pre-treatment |
|
2. Food industry filter:such as cooking and vegetable oil’s filtering, syrup,chocolate and other kinds of slurry’s filtering |
| 3. Chemical industrial filter:such as the filter of plating solution liquid,oil paint,oil plants,coating mechanical oil,cutting oil,heavy oil,fuel oil, high viscosity resin,grease and pharmacy etc |
**Main technical performance indicators
1. Filtering precision:1μm,5μm,10μm,20μm,30μm,50μm,75μm,100μm;
2. Filter cartridge OD:φ60mm,φ65mm;
3. Filter cartridge ID:φ28mm,φ30mm;
4. Filter cartridge of polypropylene can use water, acid ,alkali etc.and chemical solution and other non organic solution,
and its operating temperature≤60℃;
5. Absorbent cotton fiber filter center pole is stainless steel materials , using in organic solvent,water, oil,alkaline solution,
drink and medicine etc., with operating temperature120℃; filter cartridge length: 10″,20″,30″,40″;
7. Max anti-pressure:≤0.5MPa;Max drop of pressure:0.2MPa;
8. Max working temperature:Polypropylene line :Polypropylene frame≤60℃;
Stainless steel frame≤80℃. Absorbent cotton line:Stainless steel frame≤120℃.
