Drinking Ozone Sterilization System , RO Water Plant Purification Machine 3TPH

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Drinking Ozone Sterilization System , RO Water Plant Purification Machine 3TPH

Product Details:
Place of Origin: Guangzhou, China
Brand Name: Kaiyuan
Certification: ISO9001, CE, SGS
Model Number: KYRO-3000LPH
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: export standard wooden case(plywood), no need to fumigate, suitable for shipping.
Delivery Time: 1-7working days(depand on raw materials stocking)
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: >100sets/month
Detailed Product Description
Item Name: Ozone Sterilization System Production Capacity: 3000liters Per Hour
Recovery Rate: 50% - 75% Electrical Power: 110V - 415V 50Hz Or 60Hz
Tank Material: FRP/ Stainless Steel/ Carbon Steel RO Rack Size: 1910*620*1850MM
Warranty: 1 Year
High Light:

ozone generator water treatment

,

ozone generator air purifier

Ozone Sterilization System RO Water Plant Purification Machine For Drinking 3TPH





1. Product Description

Reverse osmosis system is using city water as feed water.

Pre-treatment filters always contain quartz sand filter, activated carbon filter, water softener and security filter. Main purpose is to remove sludge, rust, colloid, suspended solids, color, odor, biochemical organic impurity in raw water. And pre-filters can also reduce water residual chlorine and pesticide and other harmful pollutions. If raw water in high hardness, we will need to add water softener to protect reverse osmosis membrane.

2. Product Parameter

KYRO-3000LPH RO Water Treatment System:

1. Capacity: 3000 Liters per hour
2. Rated power: 7.5KW/H
3. RO System Rack Size: 1910*620*1850MM
4. Desalting rate:>=97%
5. Water recovery rate: 50-75%
8. Voltage: 110V - 415V , 50Hz or 60Hz , 3phase

3. System Advantages

.  Main part (membrane) of reverse osmosis system is imported from USA.
.  Auto stop when no water and full water.
.  Auto controller, RO membrane auto flush to protect membrane.
.  Auto start when pure water tank have no water.
.  Low pressure protection switch to protect high pressure pump when there is no raw water.
.  High efficient and low noise high pressure pump.
.  Product water conductivity meter to monitor product water quality all the time.
.  Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
.  Inlet water solenoid valve to stop water when machine is stop.

4. Optional Components

Spare part
Advice Replacement time
Quantity
PP filter cartridge
Every month
5pcs
Quartz sand
Every 15-18months
150kgs
Activated carbon
Every 15-18months
50kgs
RO membrane(LCLE-4040)
Every 2years
4pcs
All the spare parts replace period will be depend on the feed water quality.


5. Product Processing



Process: raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point

Drinking Ozone Sterilization System , RO Water Plant Purification Machine 3TPH 0

Some parts function

1.Raw water pump: provide needed pressure for every pre-treatment filter;

2.Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;

3.Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;

4.Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;

5.High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;

6.RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.

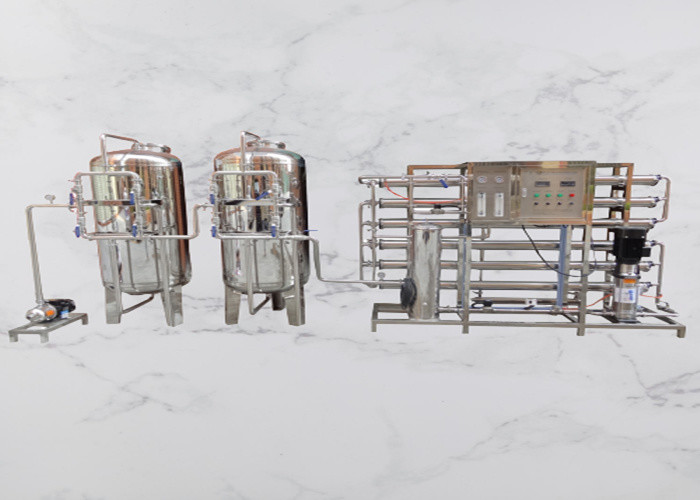

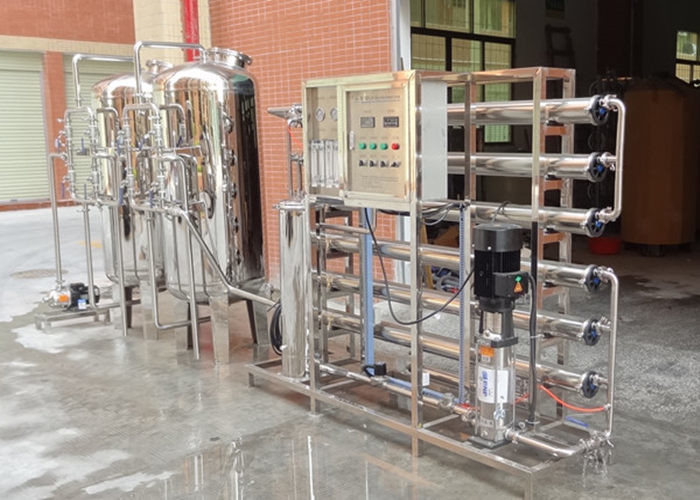

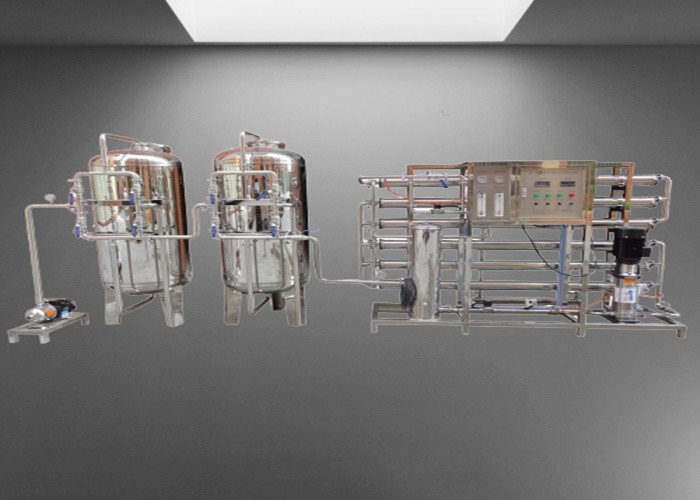

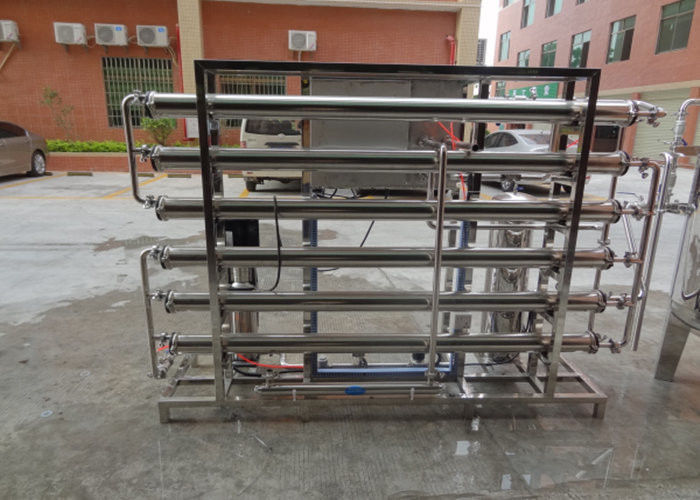

6. Pictures Show

Drinking Ozone Sterilization System , RO Water Plant Purification Machine 3TPH 1



Drinking Ozone Sterilization System , RO Water Plant Purification Machine 3TPH 2


Thank you so much for your value time.Any questions please click "contact now" send us inquiry !We will reply you within 24 hours. Tel/whatsapp/wechat: +86-13711203110

Guidelines for getting a proper quotation
Tell us the raw water/source of water
Provide water analysis report
Required production capacity( 500 liters per hour, 1000liters per hour…)
What's the pure water used for( drinking, bottle water or industrial use…)
